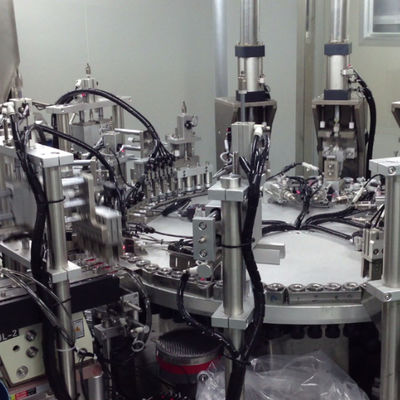

Automatic Euro Cap Assembly Machine with 4000-12000 Caps per Hour and 0.6-0.8MPa Air Pressure for High Efficiency
Szczegółowy opis produktu
| Klasa automatyzacji: |
Automatyczny |
Kwalifikowana stawka: |
99% |
| Interfejs operacyjny: |
Ekran dotykowy |
Interfejs operacyjny: |
Ekran dotykowy |
| Wskaźnik wydajności: |
powyżej 95% |
System sterowania: |
Plc |
| Woltaż: |
220V |
Ciśnienie powietrza: |
0,6-0,8MPA |
| Pojemność produktu: |
4000-12000 czapek na godzinę |
Metoda operacyjna: |
STABTABLE/MECHANICAL |
| Prędkość robocza: |
Nastawny |
Typ: |
Maszyna montażowa |
| Częstotliwość produktu: |
50 Hz |
Częstotliwość: |
50 Hz |
| Natura: |
Automatyczny |
| Podkreślić: |
4000-12000 caps per hour Euro Cap Assembly Machine, 0.6-0.8MPa Air Pressure Cap Assembly Machine, Automatic Ultrasonic Welding Machine |
Features
1. For assembly caps and closures require ultrasonic welding.
2. All materials of the equipment are made of stainless steel + aluminum alloy, meet GMP requirements.
3. Main power servo motor + indexing drive, high precision and high qualified product rate.
4. Titanium alloy welding head, international supplier of ultrasonic welding device with high quality and very long service life.
5. International brand feeding vibrator with lower noise, smoother feeding and faster speed.
Properties
|
Applicable products
|
Multi-piece plastic caps and closures requiring ultrasonic welding
|
|
Production speed
|
8000-15000pcs/hr (according to customer’s requirement)
|
|
Rate of qualified product
|
Above 99%
|
|
Rate of operation rate
|
Above 95%
|
|
Power source
|
AC380V,50Hz,4kw/hr
|
|
Dimension
|
L3500×W3400×H1800(mm) Actual size varied with different production speed
|
|
Weight
|
About 3000kg
|
|
Operator
|
1set/person
|
