Maszyna do montażu artykułów codziennego użytku

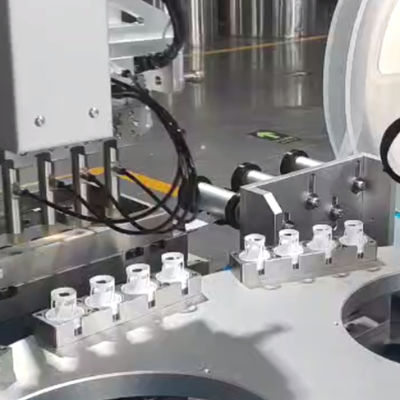

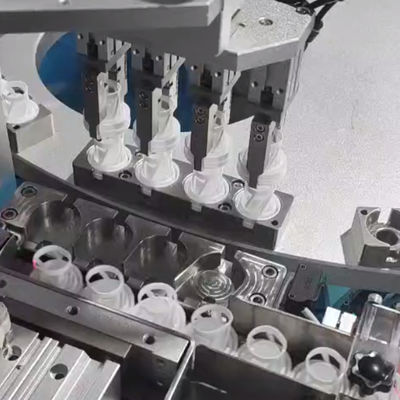

High Operation Rate 96% Desiccant Cap Assembly Machine with High Qualified Rate Above 99% and 100% Qualification Check

Nazwa marki:	SENCAN
Numer modelu:	SC-TP-811
MOQ:	1 zestaw
Cena £:	Negotiate price according to actual situation
Warunki płatności:	T/t, l/c
Możliwość zaopatrzenia:	3-20 zestawów

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

CHINY

Orzecznictwo:

CE, ISO9001

Szybkość pracy:

96%

Interfejs operacyjny:

Ekran dotykowy

Główny materiał:

stal nierdzewna

Typ operacji:

Hmi

Trwałość:

Długotrwałe

Interfejs operacyjny:

Ekran dotykowy

Korzyść:

Oba rozmiary można składać razem

System operacyjny:

Plc

Aktywna siła:

Servo Moter

Kontrola:

Plc

Operator:

Pojedynczy

Współczynnik jakości:

ponad 98%

Szczegóły pakowania:

Drewniana obudowa

Podkreślić:

High Operation Rate 96% Desiccant Cap Assembly Machine

High Qualified Rate Above 99% Silica Gel Filling Machine

100% Qualification Check Sealing Cap Assembly Machine

Opis produktu

Features

1. Applied for automatic assembly of desiccant caps for pharmaceutical and health care use.

2. Automatic filling of granular and powder desiccant like molecular sieve and silica gel, as well as caps with desiccant capsules or cores insertion.

3. Automatically punch and cut sealing paper, reduce customers’ cost and improve rate of qualified products.

4. Sealing paper waste will be automatically collected to reduce labor of operators.

5. Equipped with desiccant supply bin which can protect desiccant from moisture and pollution.

6. Round shaped caps will be loaded by feeding device which is stable and fast.

7. Each assembling process is well checked, to be sure 100% qualification of qualified products.

8. Equipped with automatic counting function for production statistics.

9. Qualified and unqualified products are released from separate exits.

10. Main drive from servo motor + indexing drive, with stable running speed and high assembly accuracy.

11. PLC control system and touch screen, easy operation for operators.

12. Customized according to customer's specifications and capacity requirements.

13. Connect with injection molding machine, camera inspection system or other equipment to form an overall automatic production line.

Properties

Applicable products	desiccant cap, silica gel desiccant cap, safety cap, CRC cap
Production speed	1500-8500pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2000kg
Operator	3sets/2persons,recommend 1set/person
